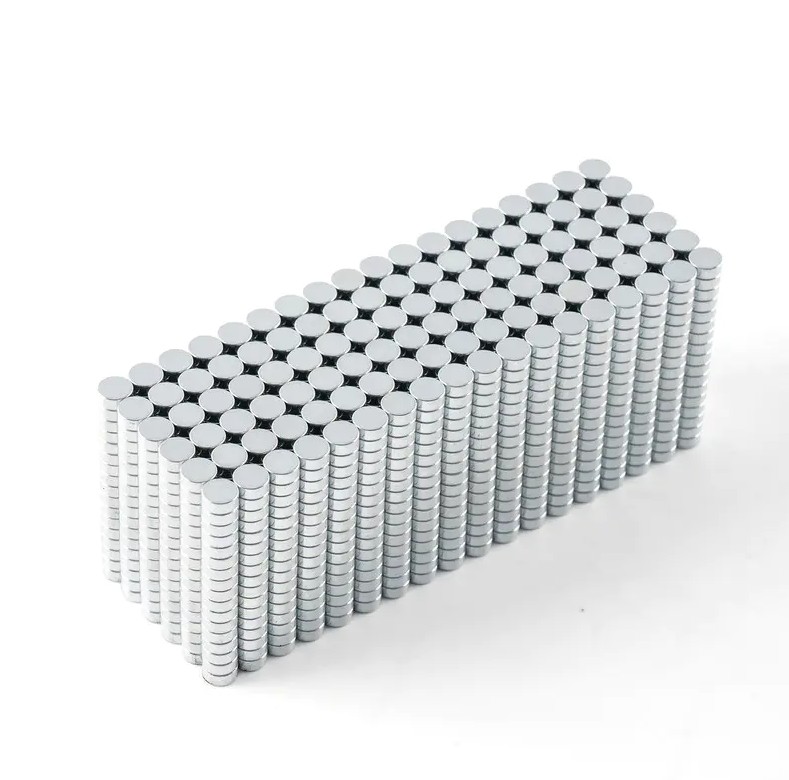

What are NdFeB magnets?

NdFeB magnets are an alloy composed of neodymium (Nd), iron (Fe), and boron (B). Their chemical formula is Nd₂Fe₁₄B, and they are tetragonal crystals. They possess high density, high magnetic energy product (BHmax), and high coercivity (Hc), making them one of the strongest commercially available permanent magnet materials.

High Magnetic Energy Product (BHmax): NdFeB magnets are among the strongest commercially available permanent magnet materials, typically ranging from 30 to 50 MGOe (mega-gauss-oersted), significantly higher than other permanent magnet materials (for example, the energy product of NdFeB magnets is 2-3 times that of SmCo magnets).

High Coercivity: NdFeB magnets exhibit strong resistance to demagnetization, making them suitable for use in high magnetic field environments.

High Remanence (Br): NdFeB magnets retain high magnetic properties after magnetization.

Disadvantages: Low Curie temperature (approximately 310-350°C), prone to losing magnetism at high temperatures; poor corrosion resistance, requiring surface treatment to improve corrosion resistance.

Preparation Method:

1. Ingredients
Raw Material Selection: Based on performance requirements, the ratios of key elements such as neodymium (Nd), iron (Fe), and boron (B) are precisely calculated. Trace elements (such as dysprosium and terbium) may be added to enhance performance.

Purity Control: Raw materials undergo rigorous chemical analysis and physical testing to ensure their purity and composition meet production requirements.

Mixing: Raw materials are mixed according to the desired ratio, typically in a ball mill, to ensure uniform distribution of the components.

2. Melting
Melting Method: Vacuum induction melting or rotary melting is used under argon protection to prevent oxidation and impurity contamination.

Process Control: Temperature, time, and cooling rate must be strictly controlled during the smelting process to ensure uniform alloy composition, high crystal orientation, and avoid the formation of α-Fe.

Ingot Formation: After the smelted alloy is cooled, an ingot is formed, providing the base material for subsequent processing.

3. Powdering
Crushing and Grinding: The ingot is crushed and ground using equipment such as crushers (such as jaw crushers and cone crushers) and jet mills to produce a fine powder with a controlled particle size of microns.

Hydrogenation: Hydrogenation is used in some processes. Hydrogen treatment causes the alloy to absorb hydrogen and expand, improving the uniformity and orientation of the powder.

4. Pressing
Magnetic Field Orientation: Powder is oriented in a strong magnetic field to enhance magnetic properties and magnetization efficiency.

Forming: The powder is pressed into a specific shape (such as blocks, sheets, or rings) using a press or isostatic press.

5. Sintering
High-Temperature Sintering: High-temperature sintering is performed under vacuum or a protective atmosphere to bond powder particles, forming a dense magnet and improving density and magnetic properties.

Tempering: Tempering optimizes magnetic properties and microstructure, enhancing the stability and performance of the magnet.

6. Magnetic Treatment
Magnetic Field Treatment: Pulsed or static magnetic field treatment is used to enhance the magnetic properties and orientation of the magnet.

7. Surface Treatment
Plating and Coating: Electroplating (such as nickel plating and zinc plating), electrophoresis, and vacuum deposition are used to improve the corrosion resistance and surface aesthetics of the magnet.

Machining: Cutting, grinding, drilling, and other processes are performed to achieve dimensional and shape accuracy depending on application requirements.

NdFeB magnets are widely used in various industrial and electronic equipment fields due to their excellent magnetic properties and high efficiency. The following are some typical applications:

1. Motors and Generators
High-Efficiency Motors: NdFeB magnets are widely used in high-efficiency motors such as electric vehicles, wind turbines, and household appliances (such as air conditioners and refrigerators). Their high magnetic energy product and high efficiency make them an ideal choice for high-efficiency motors.

Wind Power Generation: In wind turbines, NdFeB magnets are used in permanent magnets, improving power generation efficiency and reliability.

Electrical Vehicles: In electric vehicles, NdFeB magnets are used in motors and generators, improving power output and energy efficiency.

2. Electronic Devices
Hard Drives: In hard drives, NdFeB magnets are used in read/write heads and magnetic head systems, improving data storage and readout efficiency.

Mobile Phones and Headsets: In mobile phones and headphones, NdFeB magnets are used in speakers and vibration motors, providing clear sound and vibration.

Sensors and Robotics: In sensors and robots, NdFeB magnets are used for position detection and motion control, improving device accuracy and stability.

3. Medical Devices
Magnetic Resonance Imaging (MRI): In MRI equipment, NdFeB magnets are used to generate strong magnetic fields, improving image quality and diagnostic accuracy.

Medical Instruments: NdFeB magnets are used in other medical devices, such as ultrasound equipment and electrocardiographs, to improve their performance and reliability.

4. Other Applications
Aerospace: In the aerospace sector, NdFeB magnets are used in navigation systems, sensors, and propulsion systems, improving equipment reliability and performance.

Military Equipment: In military equipment, NdFeB magnets are used in radar, communication systems, and weapon systems, improving equipment performance and reliability.

5. New Energy Sector
Wind Power Generation: In wind power generation, NdFeB magnets are used in permanent magnets in generators, improving power generation efficiency and reliability.

Solar Energy Equipment: In solar energy equipment, NdFeB magnets are used in the drive and control systems of solar panels, improving equipment efficiency and stability.

Electric Vehicles: In electric vehicles, NdFeB magnets are used in motors and generators, improving power output and energy efficiency.

High Efficiency: NdFeB magnets provide strong magnetic force in a small size, saving space and improving equipment efficiency and performance.

High Cost-Effectiveness: Compared to other permanent magnet materials (such as SmCo and AlNiCo), NdFeB magnets offer a higher cost-performance ratio, lower cost, and superior performance.

High Magnetic Energy Product: NdFeB magnets have a high magnetic energy product (BHmax), providing stronger magnetic force per unit volume, making them suitable for applications requiring high precision and efficiency.
