What is a Bar Magnet?

In our daily lives, magnets are present everywhere, from the simple refrigerator clips that hold notes to the complex machinery powering modern industry. Among the various types of magnets, the bar magnet stands out due to its simple geometric shape and broad applicability. It serves as one of the most fundamental types of permanent magnets. So, what exactly is a bar magnet? How does it operate, and what critical role does it play in modern technology?

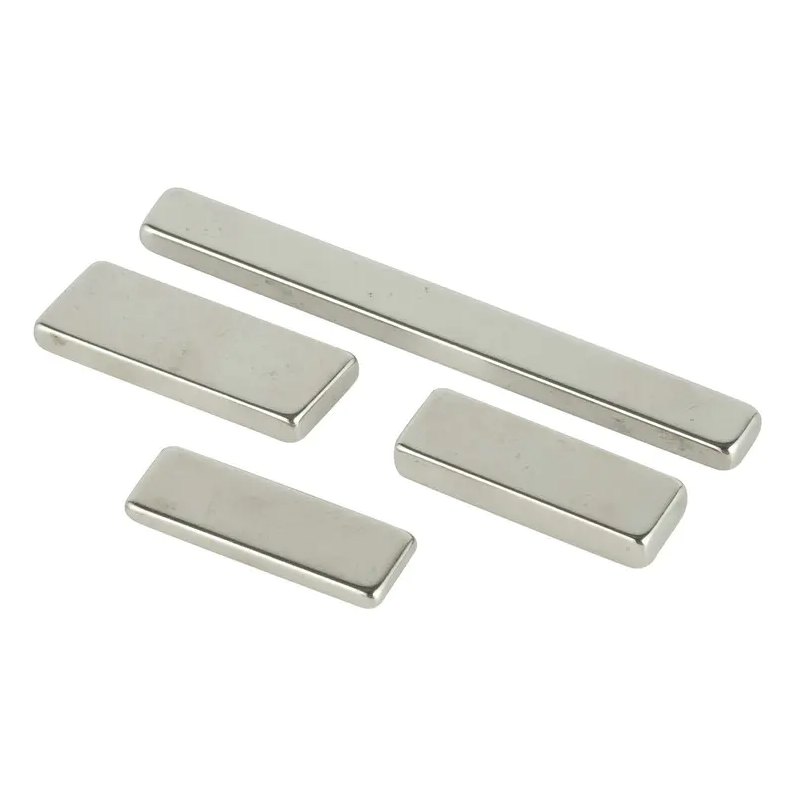

A bar magnet, as its name suggests, is a magnetic object typically shaped like a rectangular prism or a long bar. It is usually constructed from magnetic materials (such as Ferrite, Neodymium Iron Boron (NdFeB), or Alnico) and possesses fixed North (N) and South (S) poles, generating a stable magnetic field. Understanding the bar magnet is a crucial entry point into the world of electromagnetism and magnetic materials engineering.

Part 1: Fundamental Structure and Characteristics of the Bar Magnet

1. Definition and Geometry of the Bar Magnet

The bar magnet is defined as a permanent magnet—meaning it retains its magnetism over time without the need for an external electrical current. Its basic configuration is a solid, elongated object.

Geometric Shape: The typical bar magnet features two distinct ends: the South Pole (S-pole) and the North Pole (N-pole). The lines of magnetic force emanate from the North Pole and enter the South Pole.

Pole Distribution: While the magnetization within the magnetic material itself is uniform after being magnetized, the external magnetic force is most concentrated at the two ends—the magnetic poles.

2. Key Physical Property: Magnetic Field and Field Lines

The most central characteristic of a bar magnet is the magnetic field it generates.

Magnetic Field Description: The magnetic field is an invisible area of influence that exerts a force on any magnetic material placed within it.

Magnetic Field Lines: To visualize this field, we use the concept of magnetic field lines. Outside the bar magnet, these lines travel from the North (N) to the South (S) pole in continuous, closed loops. In the central region of the bar magnet, the field strength is often very uniform.

Magnetic Flux Density: This is the physical quantity used to quantify the strength of the magnetic field, measured in Tesla or Gauss. Bar magnets made from different magnetic materials will exhibit vastly different magnetic flux density values.

Part 2: The Deciding Factor: Magnetic Materials for the Bar Magnet

The performance of a bar magnet—including its magnetic force, temperature resistance, and longevity—is entirely dependent on the magnetic material used in its construction. This is a core consideration in electromagnetism and materials science.

Just as your expertise in conference equipment glass requires an understanding of high impact resistance and superior flatness, the performance of a bar magnet is intrinsically linked to the precise processing and formulation of its magnetic material.

Part 3: The Processing and Precision of Bar Magnet Fabrication

Manufacturing a high-performance bar magnet is not merely about combining raw materials; it requires advanced processing techniques, comparable to the CNC machining or laser processing you employ for creating complex shapes in your educational equipment glass.

Forming and Sintering: Magnetic material powders are pressed into the rough bar magnet shape using specialized molds. They are then subjected to high-temperature sintering, which fuses the particles into the final dense permanent magnet structure.

Precision Machining: To achieve tight dimensional tolerances required for specific magnet applications, the sintered bar magnet blanks undergo grinding, cutting, and shaping processes. For specialized magnets requiring non-standard shapes or through-holes, more advanced CNC machining is necessary.

Magnetization: After all machining is complete, the bar magnet must be placed within a powerful external magnetic field for magnetization. This step "activates" the material, permanently aligning the magnetic domains to create the stable, usable magnetic field.

Part 4: The Extensive Magnet Applications of the Bar Magnet

The simple geometry of the bar magnet has led to its widespread magnet applications across virtually every engineering discipline.

Industrial and Automation: In fields involving hydraulic machinery (like systems utilizing oil plugs or oil level sight glasses), bar magnets are frequently used as components in sensors or within magnetic separators to effectively remove ferrous contaminants from process fluids.

Electronics and Electrical Devices: They are the core components in various motors, speakers (driving the voice coil), and proximity sensors. For instance, simple fasteners, like some types of clamps that need secure, non-permanent attachment (analogous to vertical blind clips that might use magnetic adhesion), can incorporate small bar magnets.

Education and Research: As the foundational tool in electromagnetism experiments, the bar magnet is ideal for demonstrating the fundamental concepts of magnetic fields and magnetic interactions.

Consumer Products: They are found in magnetic switches, tool holders, and various closure mechanisms. Even in fastening systems like certain types of hose clamps (where the concept of strong, yet removable, fastening is key, similar to the robustness seen in American style hose clamps), magnetic principles can play a role in accessory or testing fixtures.

Part 5: How to Select the Right Bar Magnet?

Choosing the correct bar magnet involves carefully weighing several critical factors to ensure reliable and efficient magnet application:

• Required Magnetic Force Strength: This is dictated directly by the choice of magnetic material (e.g., deciding between the very high pull force of Neodymium vs. the lower cost of Ferrite).


• Operating Environment Temperature: Extreme hot or cold environments necessitate permanent magnet materials with excellent thermal stability, such as Alnico or SmCo, to prevent thermal demagnetization.


• Shape and Dimensional Tolerance: The specific fit within an assembly dictates the required bar magnet dimensions and the necessary processing precision.


• Surface Treatment: For applications involving humidity or corrosive media, protective coatings like nickel or zinc plating (similar to the galvanization you might use to protect steel components like vertical blind clips) are essential for enhanced corrosion resistance.



The bar magnet, as the foundation of permanent magnets, holds an importance that far exceeds its simple appearance. From basic electromagnetism demonstrations to the most advanced industrial control systems, this simply shaped magnet demonstrates astonishing engineering potential.
