Wholesale N35H disc round magnet for loudspaker

Home / Products / Neodymium Magnet Cylinder / N35H disc round magnet for loudspaker
  • N35H disc round magnet for loudspaker

Neodymium Magnet Cylinder

  • N35H disc round magnet for loudspaker

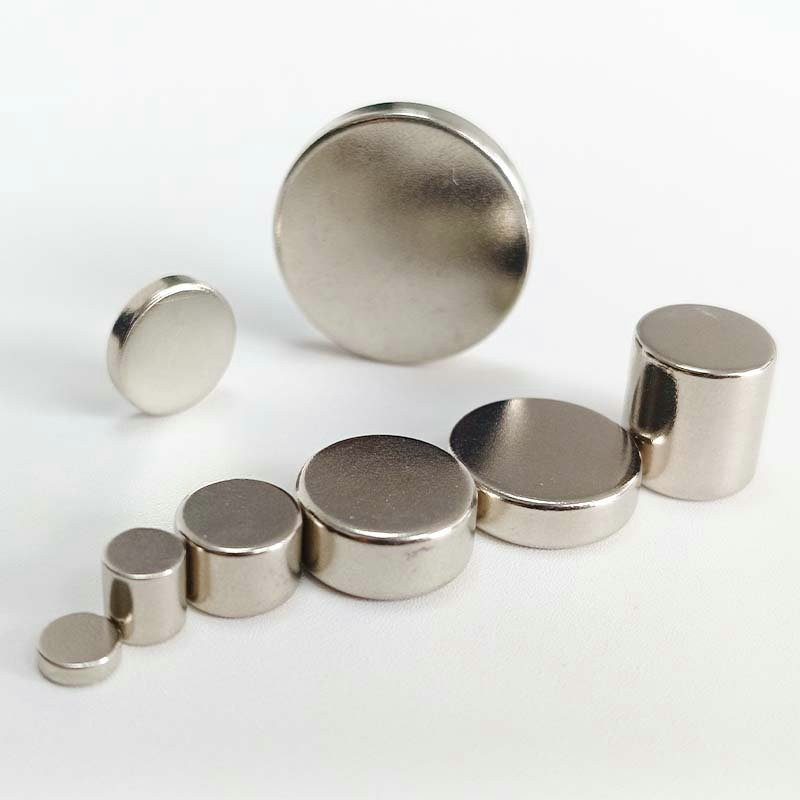

N35H disc round magnet for loudspaker

N35H Disc Round Magnet for Loudspeaker is a round magnet designed for loudspeakers.

Shape and Size:

N35H Disc Round Magnet for Loudspeaker is a standard round magnet with a moderate diameter to meet the speaker's magnet size requirements. Its regular shape and consistent diameter ensure stability and reliability during installation and use in the speaker. The magnet surface is carefully polished and processed to present a smooth and shiny appearance. This not only enhances the durability of the magnet, but also makes it less susceptible to damage or corrosion during use.

High Magnetic Performance:

N35H Disc Round Magnet is made of high-performance permanent magnetic material, with a magnetic energy product of N35H level and strong magnetic force. This enables it to provide a stable magnetic field in the speaker, ensuring the quality and effect of the sound output.

High Stability:

The magnet has high temperature stability and chemical stability, and can maintain stable magnetism under various harsh environmental conditions. This ensures that the speaker can work normally in various environments and provide excellent sound effects.

Easy to install and use:

Due to its regular round shape and moderate size, N35H Disc Round Magnet is easy to install and use. It can be easily embedded into the magnetic circuit system of the speaker and works well with other components to ensure that the speaker's performance is fully utilized.

Application Fields

N35H Disc Round Magnet is specially designed for speakers and is widely used in various audio equipment. It not only provides a stable magnetic field, but also supports the speaker to produce clear and realistic sound effects.

Inquiry

sales@tujinmagnet.com

Product Description:

Products show





Surface Coating & Corrosoin Resistance



Nickel(Ni-Cu-Ni) Zinc(Zn) Black Epoxy Gold



Type Color Plating Thickness Working
Temperature		 Advantage & Suitable Salt Spray Resistance
Nickel(NiCuNi) silver 20-30 um ≤200 high oxidation resistance, good glossiness, stable performance, long service life > 72 hrs
Zinc (Zn) blue white 10-20 um ≤160 suitable for low requirements for surface appearance & oxidation resistance > 48 hrs
Epoxy black 10-30 um ≤120 suitable for high anti-corrosion and strict atmospheric environment  > 96 hrs
Gold Gold 5-30 um ≤200 suitable for decoration accessories, gift box etc.  > 24 hrs



Tolerance





Standard Product D.OD ID L W H
<5mm ±0.1mm ±0.1mm ±0.1mm ±0.1mm ±0.1mm
<10mm ±0.1mm ±0.1mm ±0.1mm ±0.1mm ±0.1mm
<20mm ±0.1mm ±0.1mm ±0.1mm ±0.1mm ±0.1mm
<50mm ±0.1mm ±0.1mm ±0.1mm ±0.1mm ±0.1mm
<100mm ±0.15mm ±0.15mm ±0.15mm ±0.15mm ±0.15mm
>100mm ±0.2mm ±0.2mm ±0.2mm ±0.2mm ±0.2mm



Magnetization Direction



Disc&Cylinder-through Thickness Disc&Cylinder-through Diameter Spheres- through Diameter

Poles on the flat surfaces



Poles on the side surfaces
Block- through Thickness Block- through Length Arc- through Diamter

Poles on the larger flat surfaces

Poles on the smaller flat surfaces

Poles on outside&inside faces
Arc- through Length Ring- through Surfaces Ring- through Surfaces

Poles on outside&inside faces

Planar octupole magnetization

Planar quadrupole magnetization



Sintered NdFeB Magnetic Properties



Grade Remanence Coercive Force Intrinsic Coercivity Maximum Energy Working≤
Br(KG) Br(T) Hcb
(KOe)		   Hcb
(KA/m)		 Hcj
(KOe)		   Hcj
(KA/m)		 (BH)max(MGOe) (BH)max
(KJ/ m)		 ℃
Max Min Max Min
N35 ≥11.8 ≥1.18 ≥10.8 ≥860 ≥12 ≥960 37 33 295 263 N ≤80
N38 ≥12.3 ≥1.23 ≥10.8 ≥860 ≥12 ≥960 39 36 310 287
N40 ≥12.7 ≥1.27 ≥11.0 ≥876 ≥12 ≥960 41 38 327 302
N42 ≥13.0 ≥1.30 ≥11.0 ≥876 ≥12 ≥960 43 40 343 320
N45 ≥13.3 ≥1.33 ≥11.0 ≥876 ≥12 ≥960 46 42 366 335
N48 ≥13.7 ≥1.37 ≥10.5 ≥836 ≥12 ≥960 49 45 390 358
N50 ≥14.0 ≥1.40 ≥10.5 ≥836 ≥12 ≥960 51 47 406 374
N52 ≥14.2 ≥1.42 ≥10.5 ≥836 ≥12 ≥960 53 49 422 390
N54 ≥14.4 ≥1.44 ≥10.5 ≥836 ≥11 ≥876 55 51 438 406
N35M ≥11.8 ≥1.18 ≥10.8 ≥860 ≥14 ≥1114 37 33 295 263 M ≤100
N38M ≥12.3 ≥1.23 ≥11.0 ≥876 ≥14 ≥1114 39 36 310 287
N40M ≥12.7 ≥1.27 ≥11.5 ≥915 ≥14 ≥1114 41 38 327 302
N42M ≥13.0 ≥1.30 ≥11.8 ≥939 ≥14 ≥1114 43 40 343 320
N45M ≥13.3 ≥1.33 ≥12.0 ≥956 ≥14 ≥1114 46 42 366 335
N48M ≥13.7 ≥1.37 ≥12.2 ≥972 ≥14 ≥1114 49 45 390 358
N50M ≥14.0 ≥1.40 ≥12.5 ≥995 ≥14 ≥1114 51 47 406 374
N52M ≥14.2 ≥1.42 ≥12.5 ≥995 ≥14 ≥1114 53 49 422 390
N33H ≥11.4 ≥1.14 ≥10.6 ≥844 ≥17 ≥1350 35 31 279 247 H ≤120
N35H ≥11.8 ≥1.18 ≥10.8 ≥860 ≥17 ≥1350 37 33 295 263
N38H ≥12.3 ≥1.23 ≥11.0 ≥876 ≥17 ≥1350 39 36 310 287
N40H ≥12.7 ≥1.27 ≥11.5 ≥916 ≥17 ≥1350 41 38 327 302
N42H ≥13.0 ≥1.30 ≥11.8 ≥940 ≥17 ≥1350 43 40 343 320
N45H ≥13.3 ≥1.33 ≥12.0 ≥955 ≥17 ≥1350 46 42 366 335
N48H ≥13.6 ≥1.36 ≥12.2 ≥971 ≥17 ≥1350 49 45 390 358
N50H ≥14 ≥1.4 ≥12.5 ≥995 ≥17 ≥1350 51 47 406 374
N52H ≥14.3 ≥1.43 ≥12.5 ≥995 ≥17 ≥1350 53 49 422 390
N33SH ≥11.4 ≥1.14 ≥10.6 ≥844 ≥20 ≥1592 35 31 279 247 SH ≤150
N35SH ≥11.8 ≥1.18 ≥10.8 ≥860 ≥20 ≥1592 37 33 295 263
N38SH ≥12.3 ≥1.23 ≥11.0 ≥876 ≥20 ≥1592 39 36 310 287
N40SH ≥12.6 ≥1.26 ≥11.5 ≥916 ≥20 ≥1592 41 38 327 302
N42SH ≥12.9 ≥1.29 ≥11.8 ≥940 ≥20 ≥1592 43 40 343 320
N45SH ≥13.2 ≥1.32 ≥12.0 ≥955 ≥20 ≥1592 46 42 366 335
N48SH ≥13.6 ≥1.36 ≥12.2 ≥971 ≥20 ≥1592 49 45 390 358
N50SH ≥14 ≥1.4 ≥12.5 ≥995 ≥20 ≥1592 51 47 406 374
N33UH ≥11.4 ≥1.14 ≥10.6 ≥844 ≥25 ≥1990 35 31 279 247 UH ≤180
N35UH ≥11.8 ≥1.18 ≥10.8 ≥860 ≥25 ≥1990 37 33 295 263
N38UH ≥12.3 ≥1.23 ≥11.0 ≥876 ≥25 ≥1990 39 36 310 287
N40UH ≥12.6 ≥1.26 ≥11.5 ≥916 ≥25 ≥1990 41 38 327 302
N42UH ≥12.9 ≥1.29 ≥11.8 ≥940 ≥25 ≥1990 43 40 343 320
N45UH ≥13.2 ≥1.32 ≥12.0 ≥955 ≥25 ≥1990 46 42 366 335
N48UH ≥13.6 ≥1.36 ≥12.2 ≥971 ≥25 ≥1990 49 45 390 358
N28EH ≥10.4 ≥1.04 ≥9.50 ≥756 ≥30 ≥2388 30 26 239 207 EH ≤200
N30EH ≥10.8 ≥1.08 ≥9.50 ≥756 ≥30 ≥2388 32 28 255 223
N33EH ≥11.4 ≥1.14 ≥10.6 ≥844 ≥30 ≥2388 35 31 279 247
N35EH ≥11.8 ≥1.18 ≥10.8 ≥860 ≥30 ≥2388 37 33 295 263
N38EH ≥12.3 ≥1.23 ≥11.0 ≥876 ≥30 ≥2388 39 36 310 287
N40EH ≥12.6 ≥1.26 ≥11.5 ≥916 ≥30 ≥2388 41 38 327 302
N42EH ≥12.9 ≥1.29 ≥11.8 ≥940 ≥30 ≥2388 43 41 343 320
N45EH ≥13.2 ≥1.32 ≥12.0 ≥955 ≥30 ≥2388 46 42 366 335
N30TH ≥10.8 ≥1.08 ≥9.50 ≥756 ≥35 ≥2786 32 28 255 223 TH ≤220
N33TH ≥11.4 ≥1.14 ≥10.6 ≥844 ≥35 ≥2786 35 31 279 247
N35TH ≥11.8 ≥1.18 ≥11.0 ≥876 ≥35 ≥2786 37 33 295 263
N38TH ≥12.2 ≥1.22 ≥11.0 ≥876 ≥33 ≥2627 39 36 310 287
Remarks： The maximum working temperature depends on the shape, size, and coating of the magnet, the highest working temperature in the table is the test data for standard sample.
